操作 (operation) |
数量 (quantity) |
零件编号 (number) |
零件品号 (Product number) |
零件名称 (Product name) |
Q5Tt 用量 (Number of Q5Tt used) |
---|---|---|---|---|---|

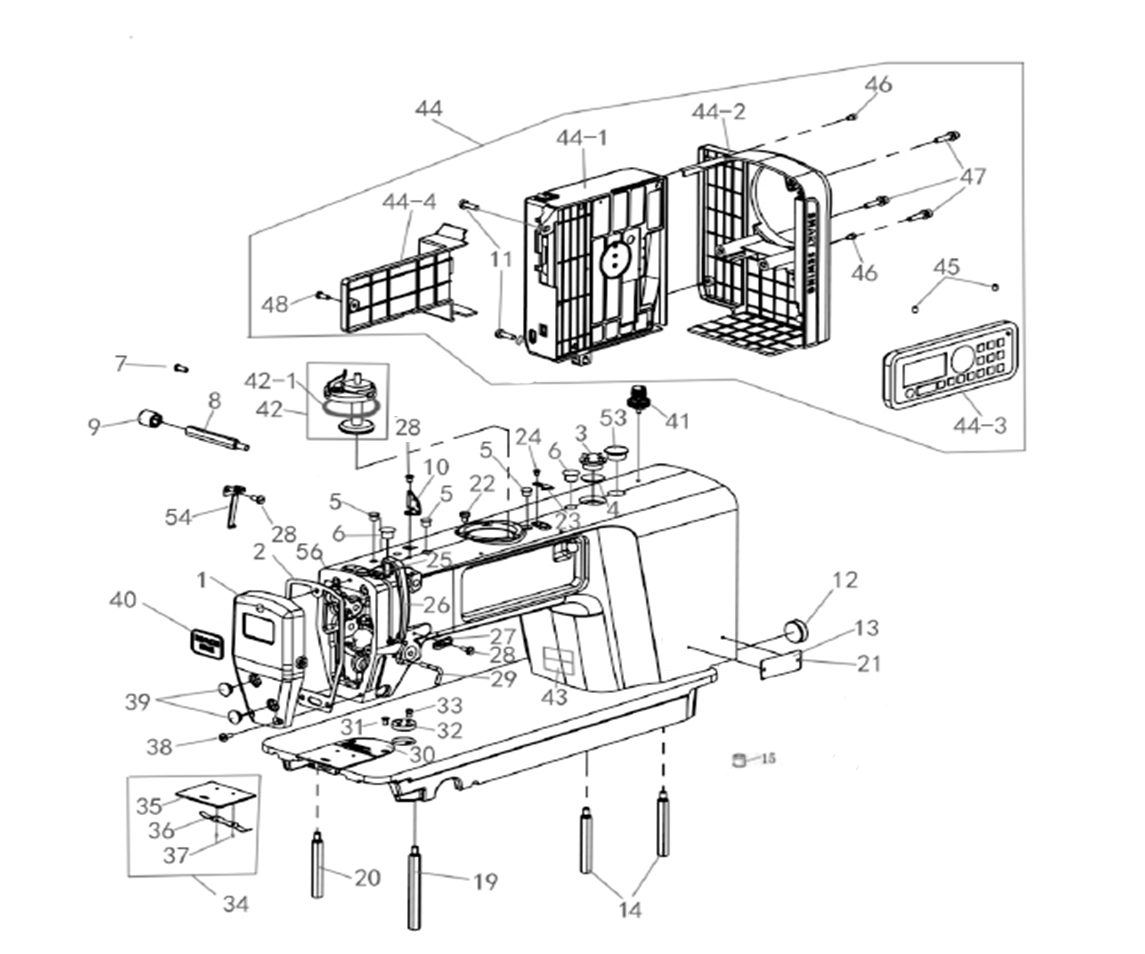

1 | PFQ5Tt0101L | 面板 | 1 | ||
2 | PFQ5Tt0102 | Q5Tt面板垫 | 1 | ||
3 | PF5550824 | 油窗 | 1 | ||
4 | PF5550825 | 油窗O形圈 | 1 | ||
5 | PF5550113 | 挑线连杆销螺孔塞(8.7) | 3 | ||
6 | PF5550112 | 针杆曲柄螺孔塞 | 1 | ||
7 | PF555016 | 后窗板螺钉GS053 | 11 | ||
8 | PFQ5Tt0120 | 翻到支柱(黑) | 1 | ||
9 | PFQ70162 | Q7支撑橡胶套 | 1 | ||
10 | PF0302113 | 三眼线勾 | 1 | ||
11 | PFQ571 | 送料距旋钮螺钉 | 2 | ||
12 | PF5550115 | 下轴盲孔塞 | 1 | ||
13 | BZ3236 | Q5Tt型号牌(亮边) | 1 | ||
14 | PF555013 | 底板支柱GS0548 | 2 | ||
15 | PFQ20115 | 电线过线套 | 1 | ||
19 | PF90000120 | 底板支柱(长) | 1 | ||
20 | PF90000121 | 底板支柱(中) | 1 | ||
21 | SCJ6071 | 铆钉 | 2 | ||
22 | PF90000131 | 绕线器紧固螺钉 | 3 | ||
23 | PF90000132 | 绕线切刀 | 1 | ||
24 | PF68425K19 | 油线支架螺钉 | 2 | ||
25 | PF5550230 | 挑线杆护罩螺钉GS0551 | 1 | ||
26 | PFQ5126 | 挑线杆护罩(电镀) | 1 | ||
27 | PF5550316 | 右线钩 | 1 | ||
28 | PF5550317 | 右线钩螺钉GS0552 | 2 | ||
29 | PF9520MXDK021 | 大线钩组件 | 1 | ||
30 | PF555063601D | 针板(四排φ1.8) | 1 | ||
31 | PF5550637 | 针板螺钉GS044 | 2 | ||
32 | PFQ50132 | 夹具座 | 1 | ||
33 | PF5550117 | 卷边器座螺钉 SM11/64″*40 L=5 | 2 | ||
34 | PF5550638 | 推板部件 | 1 | ||
35 | PF555063801 | 推板 | 1 | ||
36 | PF555063802 | 推板簧 | 1 | ||
37 | PF555063803 | 推板螺钉 | 2 | ||
38 | PF5550161 | 后盖板加长螺钉 | 4 | ||
39 | PF8420M-D3010107 | 橡皮塞12.5 | 2 | ||
40 | BZ3532 | 面板装饰牌(一拖二) | 1 | ||
41 | PFQ514101 | 重机绕线夹线器(白色) | 1 | ||
42 | PFS5T0142 | 磨砂绕线器 | 1 | ||
42-1 | PF900001511 | 绕线器垫片油封 | 1 | ||
43 | BZ3141 | 黄底警告标贴(PFQ1139) | 1 | ||
44 | PFQ5Tt0144 | Q5Tt一拖二按键电控组件(Q5Tt新款机壳)220V | 1 | ||
44-1 | PFQ5Tt014401 | Q5Tt一拖二电控主轴电机 | 1 | ||
44-2 | PFQ5Tt014402 | Q5Tt一拖二(针距抬压脚歩进电机) | 1 | ||
44-3 | PFQ5Tt014403 | Q5Tt一拖二(按键屏) | 1 | ||
44-4 | PFQ5Tt014404 | Q5Tt一拖二(主控罩壳) | 1 | ||
45 | PF68425H33 | 螺钉 | 2 | ||
46 | 1900A0403 | 螺钉 | 2 | ||
47 | SCJ2117 | 内六角螺钉(三合一) | 3 | ||
48 | PF5550629 | 牙架座螺钉GS69 | 1 | ||
53 | PF98000187 | 偏心轮调节孔塞 | 1 | ||
54 | PFQ5129 | 左线钩 | 1 | ||
56 | PF9520MXDKO2101 | 缓线勾紧固螺母 | 1 | ||
