操作 (operation) |
数量 (quantity) |
零件编号 (number) |
零件品号 (Product number) |
零件名称 (Product name) |
---|---|---|---|---|

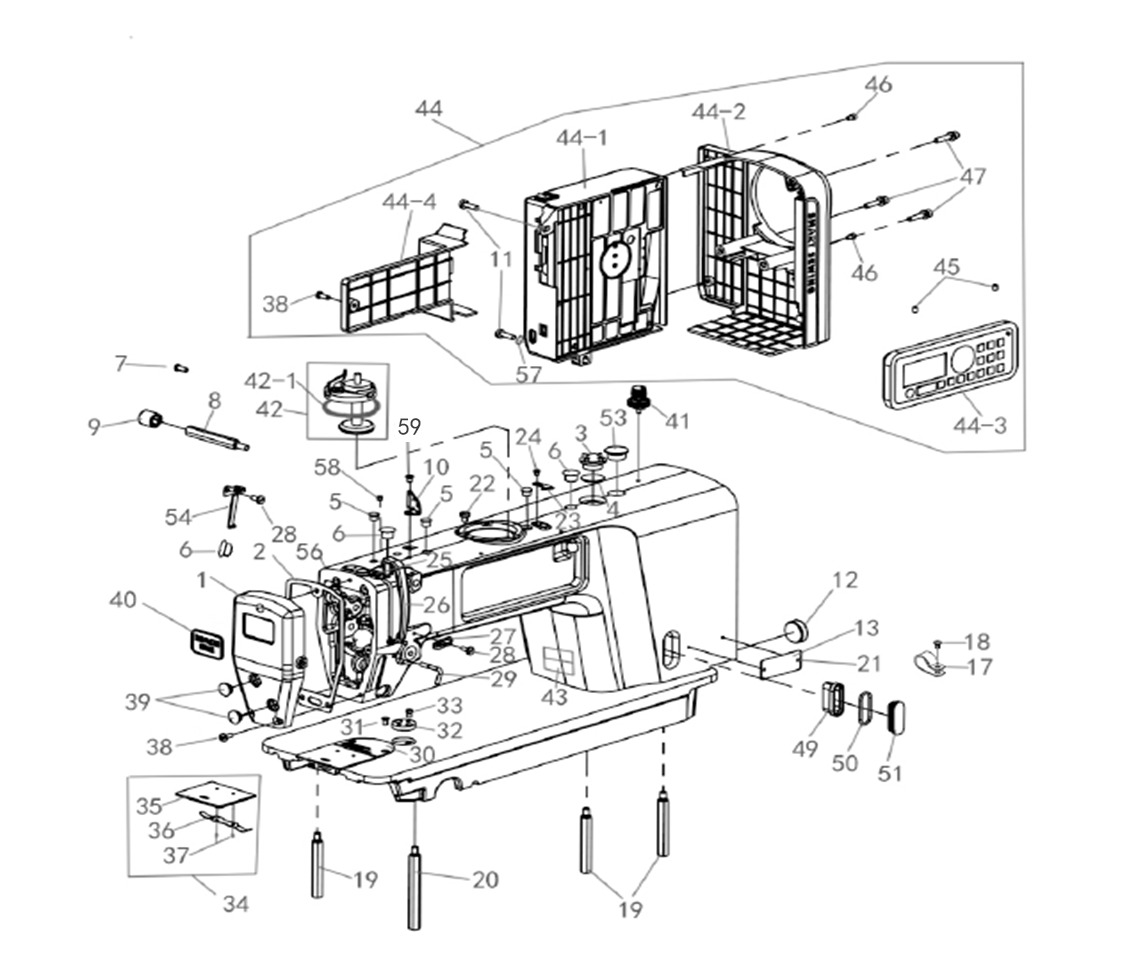

1 | PFQ5Tt0101 | 面板 | ||
2 | PFQ5Tt0102 | Q5Tt面板垫 | ||
3 | PF5550824 | 油窗 | ||
4 | PF5550825 | 油窗O形圈 | ||
5 | PF5550113 | 挑线连杆销螺孔塞(8.7) | ||
6 | PF5550112 | 针杆曲柄螺孔塞 | ||
7 | PF555016 | 后窗板螺钉GS053 | ||
8 | PFQ5Tt0120 | 翻到支柱(黑) | ||
9 | PFQ70162 | Q7支撑橡胶套 | ||
10 | PFQ5110 | 三眼线钩 | ||
11 | PFQ571 | 送料距旋钮螺钉 | ||
12 | PF5550115 | 下轴盲孔塞 | ||
13 | BZ3236 | Q5Tt型号牌(亮边) | ||
17 | SCJ5063 | 电线夹 #12(ROHS) | ||
18 | PF1310D239 | 螺钉 M4X6 | ||
19 | PFQ70119 | Q7底板支柱1 | ||
20 | PFQ70120 | Q7底板支柱2 | ||
21 | SCJ6071 | 铆钉 | ||
22 | PF90000131 | 绕线器紧固螺钉 | ||
23 | PF90000132 | 绕线切刀 | ||
24 | PF68425K19 | 油线支架螺钉 | ||
25 | PF5550230 | 挑线杆护罩螺钉GS0551 | ||
26 | PFQ5126 | 挑线杆护罩(电镀) | ||
27 | PF5550316 | 右线钩 | ||
28 | PF5550317 | 右线钩螺钉GS0552 | ||
29 | PF9520MXDK021 | 大线钩组件 | ||
30 | PF555063601D | 针板(四排φ1.8) | ||
31 | PF5550637 | 针板螺44钉GS044 | ||
32 | PFQ50132 | 夹具座 | ||
33 | PF5550117 | 卷边器座螺钉 SM11/64″*40 L=5 | ||
34 | PF5550638 | 推板部件 | ||
35 | PF555063801 | 推板 | ||
36 | PF555063802 | 推板簧 | ||
37 | PF555063803 | 推板螺钉 | ||
38 | PF5550161 | 后盖板加长螺钉 | ||
39 | PF8420M-D3010107 | 橡皮塞12.5 | ||
40 | BZ3532 | 面板装饰牌(一拖二) | ||
41 | PFQ514101 | 重机绕线夹线器(白色) | ||
42 | PFS5T014201 | 光面绕线器 | ||
42-1 | PF900001511 | 绕线器垫片油封 | ||
43 | BZ3141 | 黄底警告标贴(PFQ1139) | ||
44 | PFQ6Ls0144 | 电控组件(220V) | ||
44-1 | PFQ6Ls014405 | 电控主控 | ||
44-2 | PFQ6Ls014404 | 电控护罩 | ||
44-3 | PFQ6Ls014403 | 操作面板 | ||
44-4 | PFQ6Ls014406 | 引线护罩 | ||
45 | PF68425H33 | 螺钉 | ||
46 | PFQ5Tt0146 | 螺钉 | ||
47 | SCJ2010 | 内六角螺钉 | ||
49 | PFQ90A015902 | 油窗下体 | ||
50 | PFQ90A0163 | 油窗O型圈 | ||
51 | PFQ90A015901 | 油窗上体 | ||
53 | PF98000187 | 偏心轮调节孔塞 | ||
54 | PFQ5129 | 左线钩 | ||
56 | PF9520MXDK02101 | 缓线勾紧固螺母 | ||
57 | BF31016240049 | 垫片 | ||
58 | PF9820A50 | 橡皮塞4 | ||
59 | PF90008108 | 分线器固定螺钉 | ||
